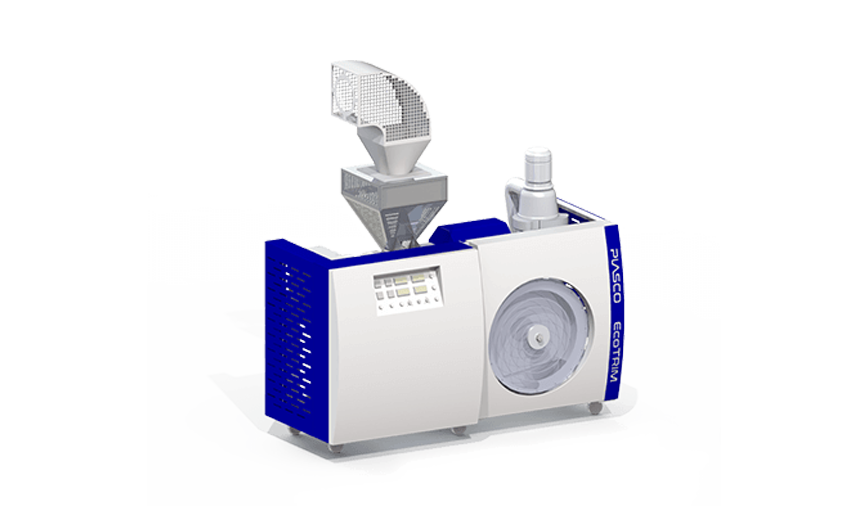

JC-ECOTRIM Series

Recycled Pelletizing Machine

JC-EcoTrim Series - Edge Trim Pelletizing Unit was introduced on the basis to the subject of “Green Eco-Friendly” awareness to the film production industry. The unit cleverly integrated advanced structural design with innovative concept for pelletizing and reclaim of trimmed film edge uninterruptedly within its system. The process starting from edge trim feeding, plasticizing, pelletizing, cooling, and reclaim, all in one complete procedure promised to save labor cost, power consumption and process time.

Technical Data

MODEL Applicable Material Screw Diameter Film Layflat Width Film Thickness Extrusion Capacity
JC-ECO TRIM80 LDPE / LLDPE / HDPE Ø 80 / 80 50 - 150 mm 0.02 - 0.20 mm 30 - 40 kg/hr
